W1 Series

W1 Series

·The 3D micro-crystal panel has a crystal-clear and transparent appearance with a high level of quality, enhancing the style of the home.
·1:8 Wide-range adjustment, energy-saving in heating, and constant water temperature for water usage
·Efficiency: 108%, low nitrogen emissions, energy-saving and environmentally friendly
·20+ safety protections, multiple safeguards for greater peace of mind
·Precise 1℃ temperature control, quickly heats up water, saying goodbye to sudden changes in temperature


Optional power / KwPrice
2413650
3014650
36
15650



W1 series condensing gas heating and hot water boiler
Technical Specifications                   Power24kW30kW36kW
Reference heating area(m²)81-185101-231121-277
Heating rated maximum heat output(kW)243036
Temperature regulation range heat sink(℃)30-8030-8030-80
Temperature adjustment range - underfloor heating(℃)30-6030-6030-60
Rated minimum heat output of domestic hot water    kW3.03.84.6
Minimum water pressure for the domestic hot water system  MPa0.0250.0250.025
Reference gas consumption (12T of natural gas) m³/h0.32-2.580.40-3.220.49-3.85

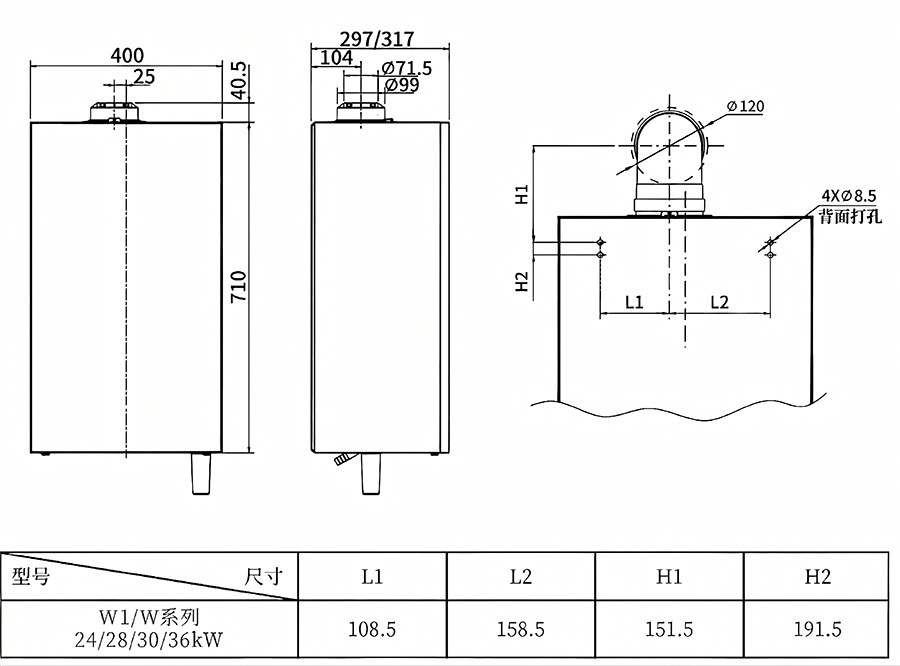

Product dimensions (length × width × height)      mm710×400×317
Note: The above parameters are for reference only. Please refer to the actual product for accuracy.
