S Series

S Series

· Imported heat exchanger configuration, large water channel, corrosion-resistant
· The controller works in perfect harmony with the fan and the proportional valve to precisely control the water temperature and provide hot water quickly.
· 42 decibels ultra-silent operation, does not disturb sleep, creating a quiet space
· 20+ safety protections, multiple safeguards for a more secure experience
· Efficiency rate 108%, energy saving 20%, a money-saving expert
Optional power / KwPrice
6038800
7041800



S Series Condensing Gas Heating and Hot Water Boiler
Reference heating area(m²)200-443233-517
Reference heating area(m²)200-443233-517
Heating rated maximum heat output(kW)57.667.2
Temperature adjustment range heat sink(℃)30-8030-80
Temperature adjustment range - underfloor heating(℃)30-6030-60
Reference gas consumption (12T of natural gas) m³/h1.59-6.351.85-7.41

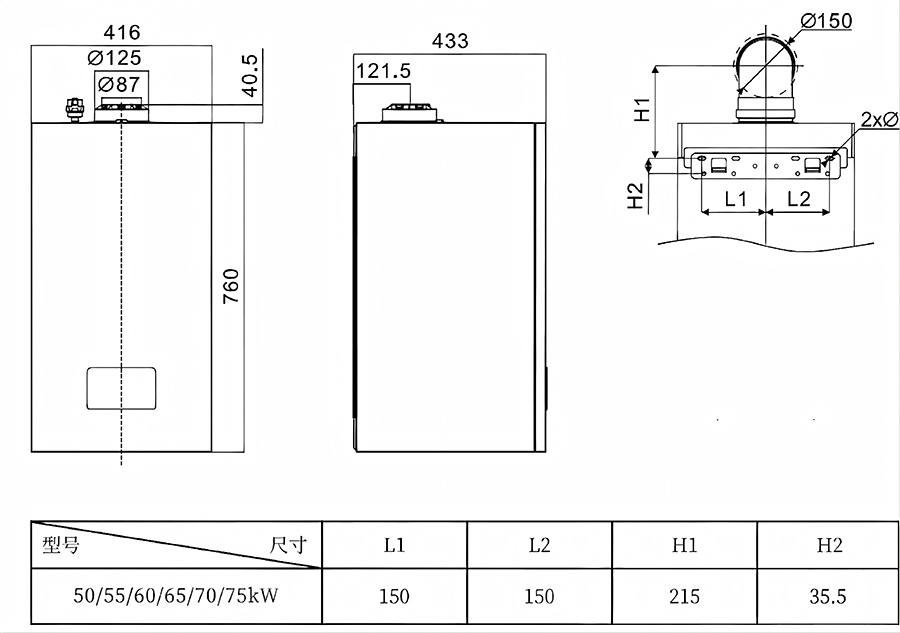

Product dimensions (length × width × height)      mm760×416×433
