Titan Series

Titan Series

· 27.5cm ultra-slim new product, small size but big power
· One-click AIoT adaptive cruise control, intelligent temperature control, convenient and worry-free
· ±1℃ precise temperature control, ensuring constant water temperature without any sudden cooling or heating fluctuations.
· Intelligent adaptation for water, electricity and gas, maintaining a constant temperature throughout the year for greater comfort.
· 1:8 Wide-range adjustment, energy-saving in heating, and constant water temperature for water usage
Optional power / KwPrice
2611366
3012366
36
13366



Titan series condensing gas heating and hot water boiler
Reference heating area(m²)88-200101-231
Heating rated maximum heat output(kW)26.030.0
Temperature regulation range heat sink(℃)30-8030-80
Temperature adjustment range - underfloor heating(℃)30-6030-60
Rated minimum heat output of domestic hot water    kW3.84.3
Minimum water pressure for the domestic hot water system  MPa0.0250.025
Reference gas consumption (12T of natural gas) m³/h0.40-2.780.46-3.22

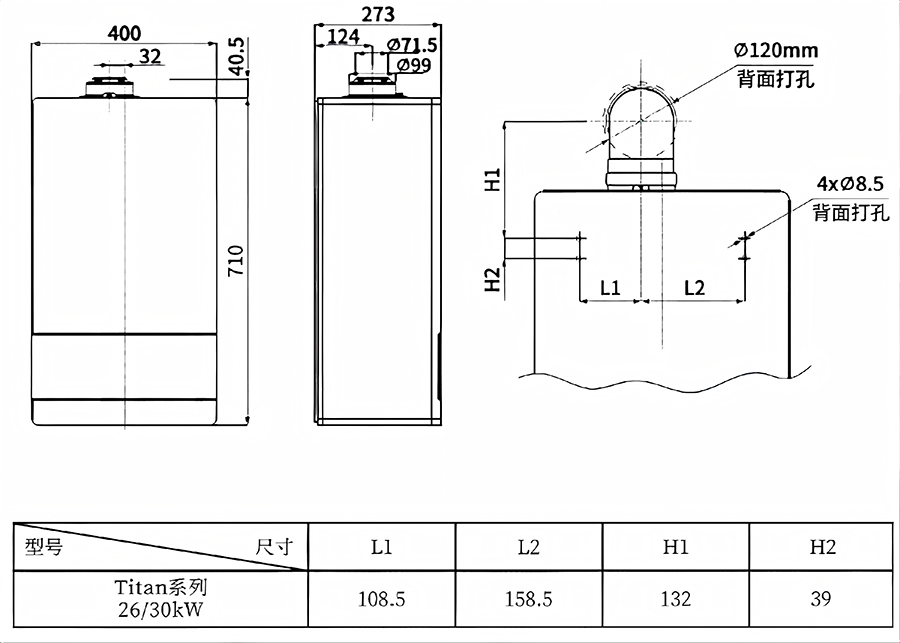

Product dimensions (length × width × height)      mm710×400×273
Note: The above parameters are for reference only. Please refer to the actual product for accuracy.
