Q3 Series

Q3 Series

· ±1℃ precise temperature control, quickly heats up water, ensuring a comfortable and stable bathing experience without sudden temperature fluctuations.
· Efficiency rate of 108%, low nitrogen emissions, highly efficient and energy-saving
· Intelligent adaptation for water, electricity and gas, temperature control, comfort without compromise
· The circuit board is 90° outwardly folded, making maintenance and repair much more convenient and worry-free.


Optional power / KwPrice
248800
309800
36
10800



M series sectional gas heating and hot water boiler
Technical Specifications                   Power24kW30kW36kW
Reference heating area(m²)90-150100-200150-250
Heating rated maximum heat output(kW)24.030.036.0
Temperature regulation range heat sink(℃)30-8030-8030-80
Temperature adjustment range - underfloor heating(℃)30-6030-6030-60
Rated minimum heat output of domestic hot water    kW4.84.35.2
Minimum water pressure for the domestic hot water system  MPa0.0250.0250.025
Reference gas consumption (12T of natural gas) m³/h0.37-2.580.46-3.220.55-3.85

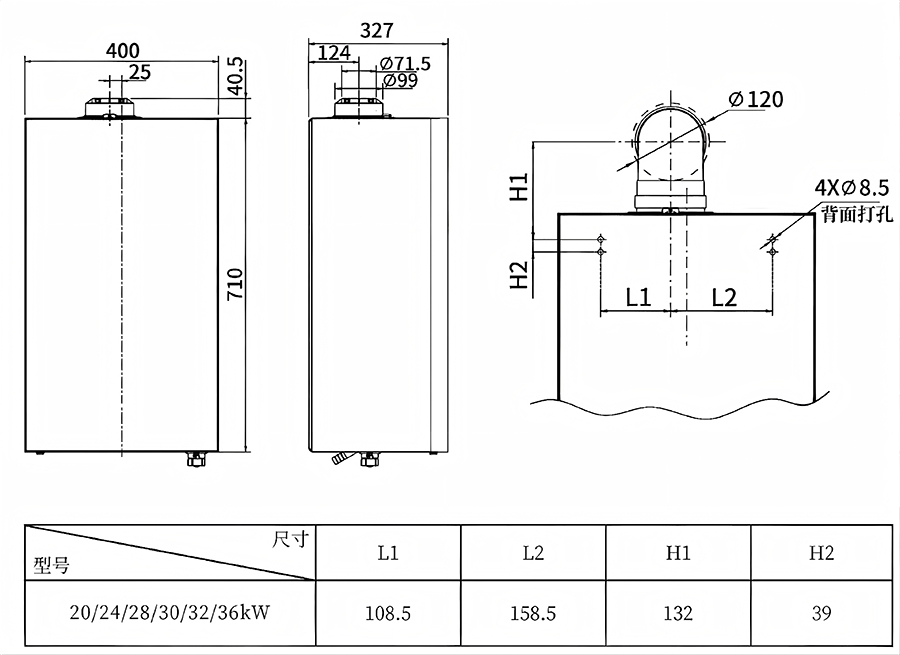

Product dimensions (length × width × height)      mm710×400×327
Note: The above parameters are for reference only. Please refer to the actual product for accuracy.
