G Series

G Series

· Silicon-cast aluminum integrated heat exchanger, with an extremely long service life
· Efficiency rate: 108%. Energy saving: 20%. A money-saving expert!
· 42 decibels silent operation, no disturbance to sleep
· 20+ safety protections, multiple safeguards for greater peace of mind
· Remote control of the mobile phone, intelligent and convenient, always keeping you at ease.


Optional power / KwPrice
2416709
3017680
36
18894



G series condensing gas heating and hot water boiler
Technical Specifications                   Power24kW30kW36kW
Reference heating area(m²)81-185101-231121-277
Heating rated maximum heat output(kW)24.030.036.0
Temperature regulation range heat sink(℃)30-8030-8030-80
Temperature adjustment range - underfloor heating(℃)30-6030-6030-60
Rated minimum heat output of domestic hot water    kW3.54.35.2
Minimum water pressure for the domestic hot water system  MPa0.0250.0250.025
Reference gas consumption (12T of natural gas) m³/h0.37-2.580.46-3.220.55-3.85

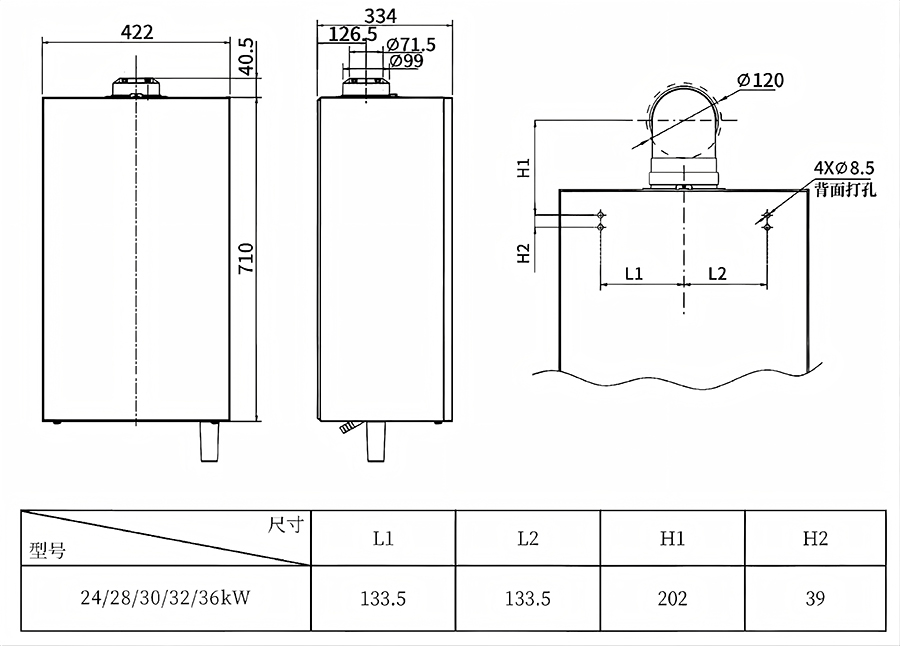

Product dimensions (length × width × height)      mm710×420×334
Note: The above parameters are for reference only. Please refer to the actual product for accuracy.
